Protect MyMachine /3D Twin
Prerequisites REQUIRED

    Protect MyMachine /3D Twin(NodeLock)

    Provided by SIEMENS

    Ensuring machine health and shopfloor productivity using digital twin.

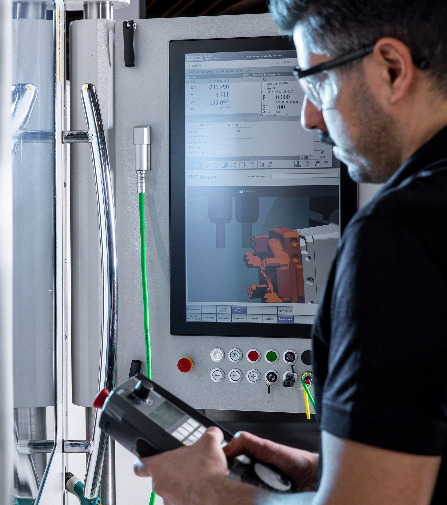

    Collision avoidance system, operating on an Industrial PC within the machine cabinet, offers flexible collision monitoring without rigid constraints on defining 3D geometries. Its advanced simulation capabilities enable preemptive collision detection and process interruption, ensuring robust protection for machine components and tools. This versatile application seamlessly adapts to diverse machining scenarios, enhancing safety, sustainability and efficiency in manufacturing environments.

    Pricing Breakdown per Device One Time Annually
    License USD $2,293.00
    Maintenance USD $505.00 USD $505.00
    Total Initial Price USD $2,798.00

    *Fees per device. Total initial price includes both the license fee and the first year maintenance fee. Maintenance will be billed annually thereafter.

    The selected products cannot be added to cart. Please review and modify product selection.

    Total: USD $2,798.00

    ( USD $2,798.00 / year after trial period )
    Incl. Maintenance fees for year one
    You Purchased this Product before and cannot purchase it again
    You previously purchased a trial license of this product and cannot purchase again.
    Configuration should at least have one item, to add to cart
    Supported payment types: Request Quote

    Thank you for your interest in the MindSphere application Protect MyMachine /3D Twin(NodeLock) . A member of the team will get in touch with you shortly about your request.

    Best regards,

    Your MindSphere team

    Your request has been timed out. Please try again.

    Added to cart

    Quantity

    Estimated total
    Tax calculated at checkout

    Key Features
    • Material removal simulation based on future positions and actual axes positions (requires Pro extention)

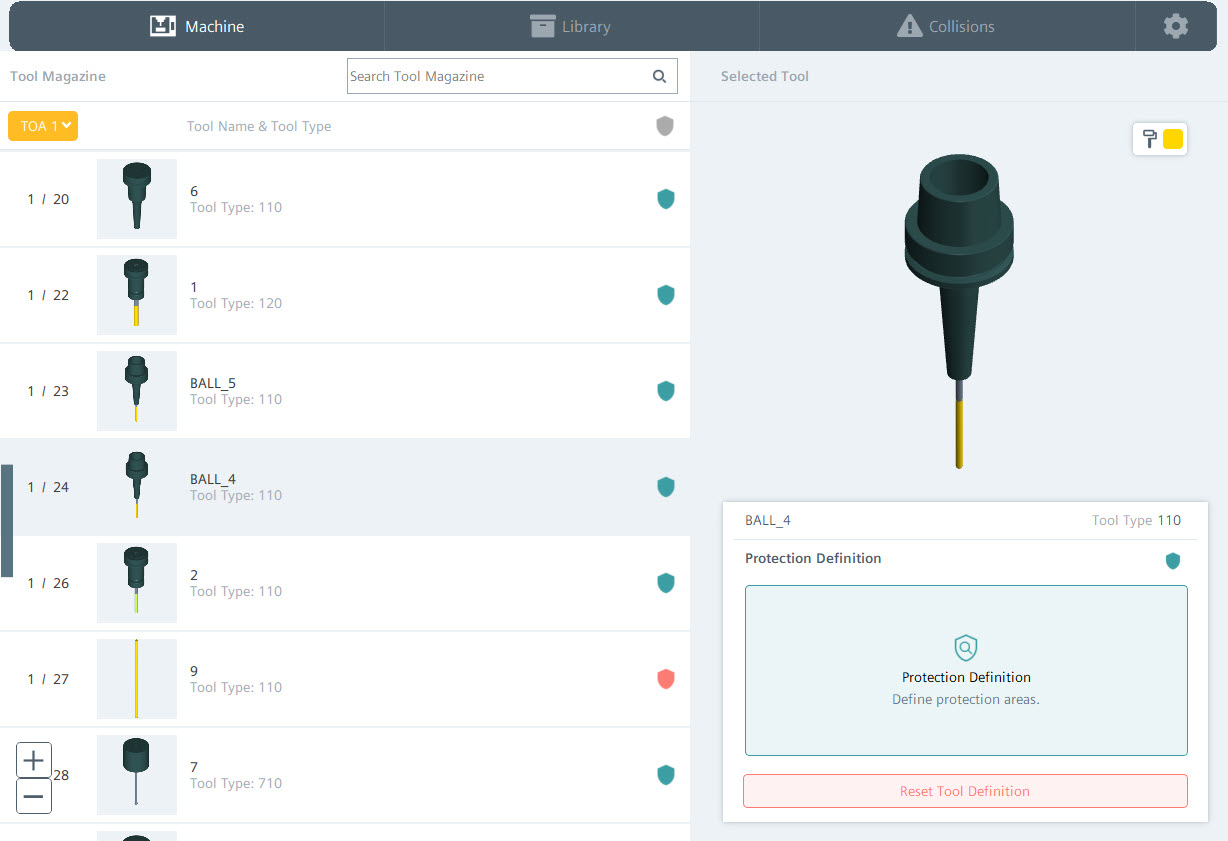

    • Parametric and 3D import options for tool simulation
    • Tool geometries and work offsets data are continuously retrieved from NC and updated in the App
    Benefits
    • Complete machine tool protection by considering the removed areas in any operating mode (requires Pro extention for material removal simulation)

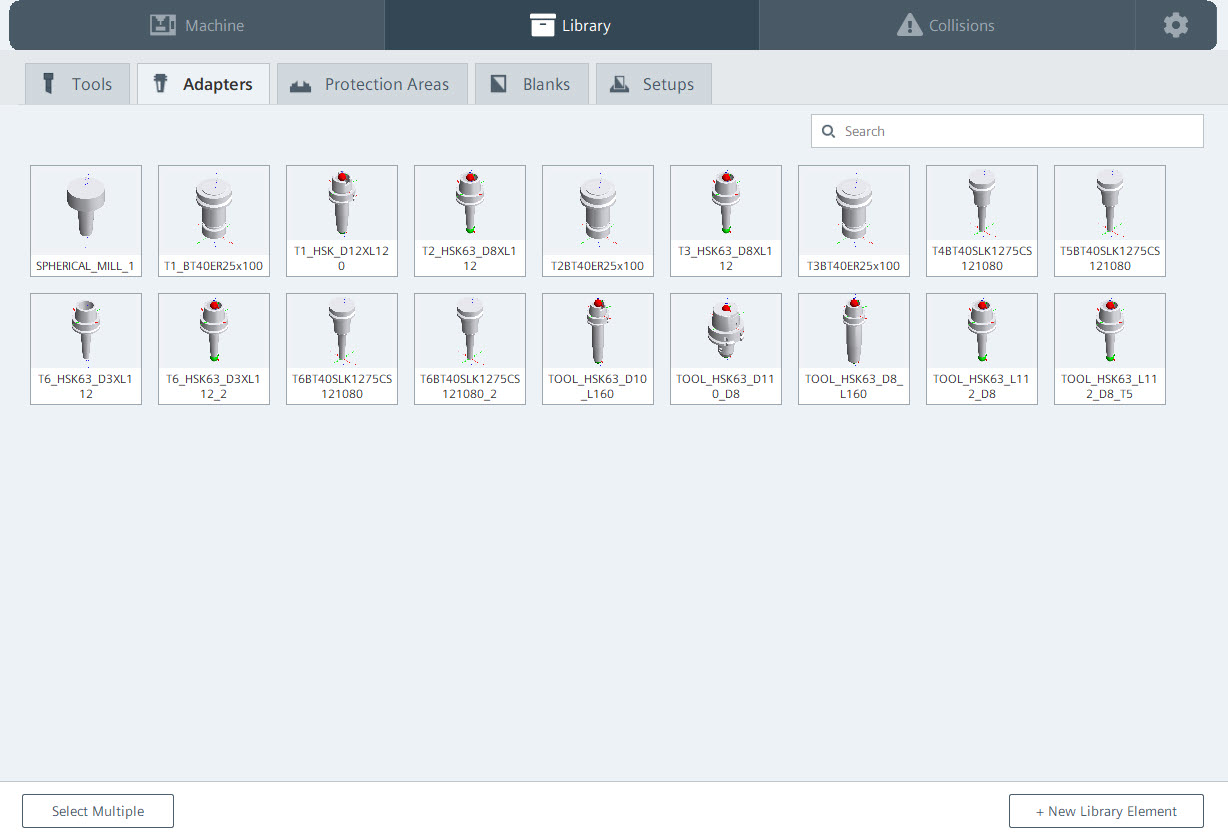

    • Create the best possible representative of your workspace and store it in your library for later use
    • High usability due to automatic update of tool and offset data



    How to use the digital twin to real-time protect your machine on the shopfloor

    Requirement: Even in the most well-structured processes, operational errors can cause machine tools to collide. Such errors include those in manual movements and interventions that cannot be performed offline. Moreover, the tool lengths and reference points that active on the machine may differ from the specified ones. When there is no real-time protection system, overcaution in trial cuts can also prolong the process and cause stress.
    Solution approach: Such operating and programming errors can be prevented before they occur if they can be simulated on the 3D kinematic model which works in synchronization with the connected machine tool.

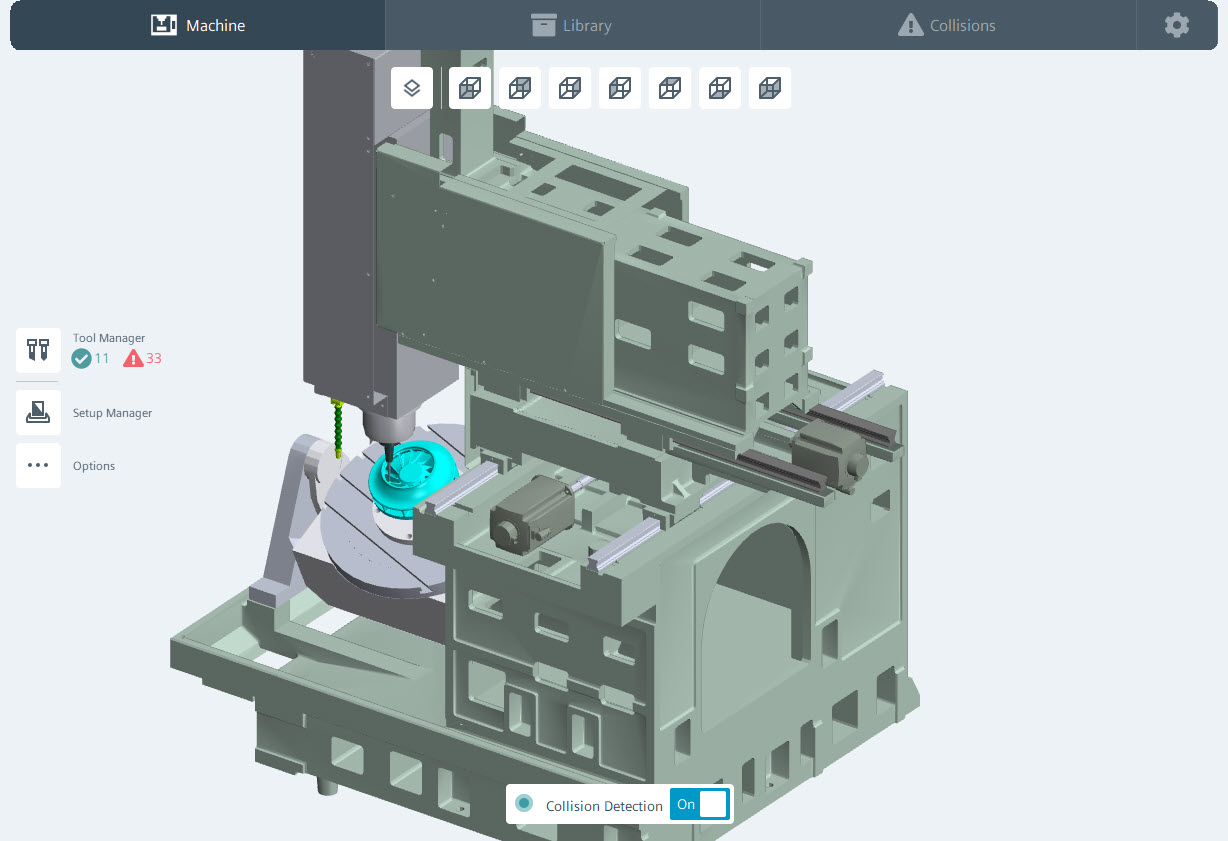

    Our solution: The Protect MyMachine /3D Twin Edge application allows users to create and place the job setups on the machine tool’s 3D Kinematic model to prevent any collisions during operation.

    Additional Information

    Thank you for your interest in our solutions for your business.

    Siemens AG

    Frauenauracher Str. 80, 91056 Erlangen

    https://www.siemens.com/global/en.html

    Get in touch with us and look-up SINUMERIK Edge at: https://support.industry.siemens.com/cs/start
